Productshow

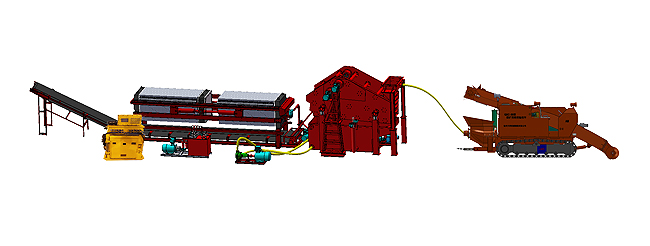

Clearance Machine

I. Introduction:
Smart mine clearance machine is the Xuzhou TIANKE Machinery Manufacturing Co., Ltd. newly developed high-tech products. This machine adopts PLC automatic control system of mine explosion-proof and intrinsically safe. Native set of machines, electrical, hydraulic integration, one-button operation. Automatic operation; automatically determine stirred tank level, automatic filter press, automatic unloading, automatic loading, automatic shutdown of fault diagnosis, the the pressure filtration parameters can be adjusted at any time according to the slime nature. This product is intelligent products, coal mine water positions clear dig coal washing plant, sewage treatment plant, tailings slurry and other materials can also be used for solid-liquid separation processing.
Second, the main features:
1, one-button operation, automatic control: PLC automatic control system of mine explosion-proof, can be realized cylinder compression, feed, filter press, unloading, loading automation, intelligent, streamlines operations, enabling unmanned operation , automatically running.
2, safe and reliable: using mine explosion-proof pressure transmitter and mine flameproof limit switch, bi-directional detection, accurate action to avoid misuse of the manual and auxiliary time; fault diagnosis, automatic shutdown. The combination of automatic and manual.
3, double-workspace operations: filter press for dual workspace structure, filter press, unloading and continuous operation, work efficiency increased by 1.5-2 times.
4 full hydraulic power equipment, PLC program control various process parameters can be adjusted at any time based on the nature of the material requirements, automatic control.
5, equipped with a filter press dedicated pump, constant pressure into the material, to avoid the mud leakage phenomenon, to extend the life of the filter cloth, the pressure filtration efficiency, to ensure the safety of the equipment, reliable operation.
, Equipment, simple structure, small footprint, and do not do the foundation.
Third, the technical parameters:

No.	Device Name	Parameter name	Parameter values
A	Double workspace filter press	MYSZ
1		Dry slime production capacity（t/h）	5-8	10-15	15-20
2		Feeding concentration (%)	40-50
3		The material moisture (%)	28-34
4		Recycled material particles (mm)	0.02-11
5		Equipment Dimensions (mm)	626014651580	626015651680	716018502050
6		Filtration area	90	120	180
Two	Double crude ext.
1		Power (Kw)	4+4+*2
three	Mine filter press pump
1		Flow rate (m³ / h)	20	25	35
2		Head (m)	≥75	≥75	≥75
3		Power (Kw)	18.5	22	30
4		Import Size (mm)	100	100	100
5		Export Size (mm)	100	100	100
Four	Mining operation box
		Voltage (V)	24
Five	Flameproof and intrinsically safe PLC control box
1		Voltage (V)	1140/660/330
2		Intrinsically safe parameters	Voltage：DC24V Electric current：280ma/140ma
Six	Hydraulic pump station
		Power (Kw)	11	11	11
Seven	Slime dredging truck	QSC-30
1		Flow rate (m³ / h)	0-30
2		Head (m)	≥50（Vertical）≥1000（Level）
3		Output pressure（MPa）	≥10
4		Motor power (Kw)	90
5		Spiral size（mm）	∮400*1600（Adjustable）
6		Outlet size（mm）	DN100
7		Suitable for slope (°)	±18
8		Dimensions (mm)	500017002350
Eight	Belt conveyor
		Power (Kw)	4	4	5.5
