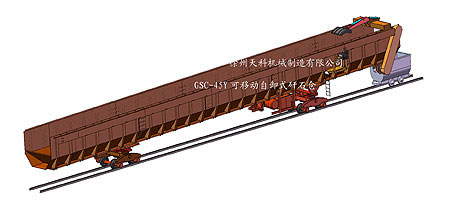

GSC-series dump waste rock storageV

1. The product characteristics
GSC-series dump waste rock storage (hereinafter referred to dump waste rock storage) is a company specifically for the coal mine roadway rapid excavation construction and waste rock transit, temporary storage of the latest patented product design. This product is powered hydraulic pump station, the motor drive wagons upper scraping bucket mechanism moves through the boom and the Grilled claw complete reprint of the waste rock, unloading. The simple structure of the product, the assembly can be disassembled, easy to go down transportation and installation, moving, assembling and then use can be disassembled after use, particularly suitable for coal mine the temporary storage Dagan and transshipment. The machine has two kinds of fixed and mobile, flexible application, both bicycles and lap set of columns to use. Safety, environmental protection, mucking, high efficiency, easy operation and low labor intensity characteristics.
2. The main purpose and scope
This product is mainly used for coal mine waste rock, temporary storage, transshipment, tunneling construction fast the gangue. Can also be used for railway tunnels, hydraulic culvert there larger engineering section mechanization of construction operations, is a highly efficient storage slag, slag transport equipment. Loading equipment supporting the use of the machine with bucket loaders, belt conveyor, unloading equipment without restriction, in combination with a variety of devices composed of a high degree of mechanization, large capacity installed ballast tunnel system is fast heading.
3. Model and significance

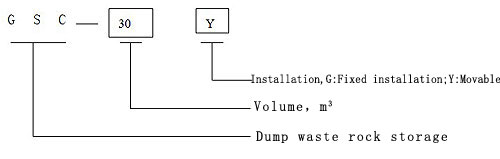

3.1 Model Representation

3.2 Tag example
Volume of 30 m3 movable dump waste rock storage, is expressed as: GSC-30Y　
4. specifications and parameters

No.	Model	Installed power (kW)	Volume m³	Load (t)	Dimensions m (Length × width × height)P>	Remark
1	GSC-30	37	≥ 30	≥ 60	17×2.0×3.0	Mobile, fixed two
2	GSC-45	37	≥ 45	≥ 90	21×2.0×3.2	Mobile, fixed two
3	GSC-60	45	≥ 60	≥ 120	28×2.0×3.2	Mobile, fixed two
4	GSC-90	55	≥ 90	≥ 180	41×2.0×3.2	No mobile
5	GSC-120	55	≥120	≥ 240	51×2.0×3.2	No mobile
