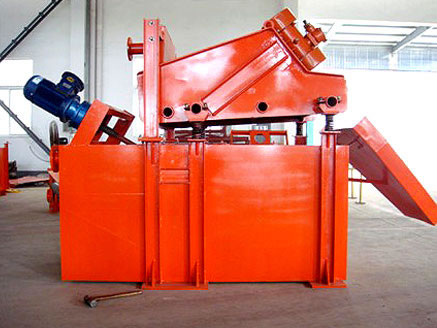

The ZMC mine slime crude extension

　　
Product use and the use of:
The ZMC-type mine slime coarse ext patented product is the Xuzhou TIANKE Machinery Manufacturing Limited. The machine for underground the water positions slime particles uneven thickness, especially coarse particles (diameter φ1.0mm above) the content of a large water storage slime treatment designed the machine's main function is to be pumped over the slime thickness particle separation and provide buffer storage for the next step fine slime processing. The machine is suitable for underground water sump slime and a variety of slurry thickness of the particle separation.
Product Features:
The product structure is simple, compact and lightweight, smooth vibration special sieve bar design, can effectively reduce the material blocking the sieve. Using the double-folding type agitator and stirred sufficiently, the material can effectively inhibit the precipitation.
Main performance parameter model:

MC—1Slime treatment（m3/h）

30

Mesh surface（m2）

1.1

Exciter power（kW）

1.1×2=2.2

Vibration frequency (times / min)

1410

Amplitude (mm)

5～12

Buffer tank capacity (m 2 )

1.5

Mixing Motor Power (kW)

4

Mixing head speed (rpm)

85

The overall Dimensions
(length × width × height)

2780×1330×1972

Total weight (kg)

1300

Structural performance and works:
Products supporting the Company press, it can play the role of front-stage filtration slime After stirring and filtered, pressurized and filter fed to a filter press.
This product is in two parts in the structure and function:
1, slime thickness separation; It is a core part of the entire device, the course of their work is the use of a vibration motor as vibration source, so that the material is thrown up in the sieve, while forward for linear motion, material from the feeder (slime conveyor pump) evenly into the feed inlet of the crude extension was generated through the mesh sieve, sieve material under, respectively, is discharged from the respective outlet. Wherein the sieve under purified by stirring tank mounted on the vibrating sieve conveyor to the filter press, and then subjected to pressure filtration. The oversize material is mainly large coal or rock particles (the size of the particles on the sieve mesh adjustment), followed directly by connected to the buffer mixing tank guided feeder conveyor belt filter press, filter press out of the the slime pie with loading, shipped out.
2, thin slime buffer stirring; its main role is in the conveying between the pump and pressure filtration pump from the buffer and stirred. As a buffer tank, and can effectively reduce the possibility of the filter press pump suction air. Conveying a uniform density and easier molding slime water as a mixing tank for filter press to improve the efficiency and effectiveness of filter press, and effectively prevent the the slime particles of precipitation.
